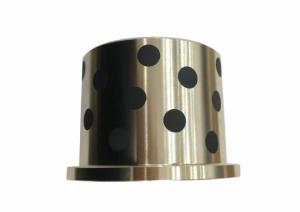

C93200 SAE660 RG7 Cast Bronze Bearings Spacer Alloy Leaded Tin Bronze Bushing Metal Graphite

Name: C93200 SAE660 RG7 Cast Bronze Bearings Spacer Alloy Leaded Tin Bronze Bushing Metal Graphite
Brand: TOB Brass Bronze Bearings
Price: 1 USD

Wholesale C93200 SAE660 RG7 Cast Bronze Bearings Spacer Alloy Leaded Tin Bronze Bushing Metal Graphite from china suppliers

Brand Name : TOB Brass Bronze Bearings

Model Number : C93200 SAE 660 Tin Bronze

Certification : ISO 16949

Place of Origin : MADE IN CHINA

MOQ : Standard Size Bushing No Minimum Order Quantity

Price : negotiated

Payment Terms : T/T, Western Union

Supply Ability : negotiated

Delivery Time : negotiated

Packaging Details : Standard Export Cartons or Pallets

Bronze Bearings Material : SAE 660, SAE 660 bronze, and SAE 660 bearing bronze

Application : INDUSTRIAL: thrust washers, pumps, bushings, machine parts,

Name : JDB Bearing, OILES 500# Bearing, Solid Lubricating Bearings

Types : Cylinder Bearings, Thrust Washer, Slide Block, etc.

Contact Now

C93200 SAE660 RG7 Bronze Spacer Alloy Leaded Tin Bronze Bushing Metal Graphite

CDA Copper, Brass, and Bronze Alloys Bearing & Bushings. BRONZE BEARINGS COMPOSITION

Bronze Bearing Wheel C93200 (SAE 660 RG7) Bronze Bushing & Spacer- Metal Graphite Bearing Plain Bearing Components PN RG7 DIN CuSn7Zn4Pb7

SAE 660 Bushing ISO CuSn7Pb7Zn4 CuSn7 DIN 1705 RG 7 Bronze Bearing Cast Bronze Sleeve Bushing
C93200 Leaded Tin bronzes C93200 (SAE 660 RG7) Leaded Tin Bronze is considered the "standard" bearing material for light duty. The alloy has excellent machining properties, good hardness, strength and wear resistance with excellent antifriction qualities.

NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED.INCH SIZE ALSO AVAILABLE.

2. REMOVE SHARP EDGES.

3. AVOID WELDING SPATTERS, REMOVE IF ANY

4.MACHINING TOLERANCE

C93200 Leaded Tin Bronzes Bushing

Chemical Composition

Cu%1	Pb%	Sn%	Zn%	Fe%	P%2	Ni%3	Al%	S%	Sb%	Si%
Chemical Composition according to ASTM B505/B505M-18
81.00- 85.00	6.00- 8.00	6.30- 7.50	1.00- 4.00	0.20	0.15	1.00	0.005	0.08	0.35	0.005

Similar or Equivalent Specification

CDA	ASTM	Asarcon	SAE	AMS	Federal	Military	Other
C93200	B505 B505M B144-3B	77	660 J461 J462		QQ-C-390, E7; QQ-B-1005, COMP 12	MIL-B-11553, COMP 12	Bearing Bronze

C93200 (SAE660) Bearing Bronze / C932 Bearing Bronze

Typical Uses
AUTOMOTIVE: automotive fittings
FASTENERS: washers
INDUSTRIAL: thrust washers, pumps, bushings, machine parts, sliding bearings, pump bushings, hydraulic bushes, insert bearings, bearings.

ZHEJIANG TOP BEARINGS CO., LIMITED one of the professional sae 660 bushing iso cusn7pb7zn4 cusn7 din 1705 rg 7 bronze bearing cast bronze sleeve bushing manufacturers, is also known as an excellent supplier in China. We now bring you the best quality sae 660 bushing iso cusn7pb7zn4 cusn7 din 1705 rg 7 bronze bearing cast bronze sleeve bushing with high precision and reliable performance. Should you are interested in it, please feel free to get in touch with our factory.

C93200 SAE660 RG7 Cast Bronze Bearings Spacer Alloy Leaded Tin Bronze Bushing Metal Graphite
